S3 CloudFront Integration in 2026: The Architecture Playbook

A single CloudFront cache-policy misconfiguration cost one SaaS team $11,400 in unexpected S3 egress over a holiday weekend in Q1 2026. The distribution was live, TLS was green, the custom domain resolved — and the cache-hit ratio sat at 6%. Every request punched through to origin. S3 CloudFront integration looks simple on the surface: create a distribution, attach a bucket, done. In practice, the delta between a working setup and an optimized one is measured in latency percentiles, origin-request volume, and monthly invoices. This playbook gives you the architecture pattern, the OAC configuration sequence, the cache-tuning thresholds, and a cost model comparison — everything required to move an S3 origin behind a CDN edge layer that actually absorbs traffic instead of proxying it.

What Changed for S3 CloudFront Integration in 2026

AWS deprecated Origin Access Identity (OAI) creation in 2024 and, as of March 2026, new distributions can only use Origin Access Control (OAC). If you are still running OAI-based policies, they work — for now — but they cannot be attached to new distributions, and AWS documentation explicitly recommends migration. OAC supports SSE-KMS encrypted buckets, which OAI never did, and it signs requests with SigV4 rather than relying on a special CloudFront identity principal. This matters if your compliance posture requires KMS-managed keys on every object at rest.

CloudFront's 2026 cache-policy engine now supports up to 10 custom cache keys per behavior, and the managed CachingOptimized policy automatically normalizes Accept-Encoding for Brotli and gzip without requiring separate behaviors. Response-header policies can inject Permissions-Policy, COEP, and COOP headers at the edge — headers that many teams were previously bolting on through Lambda@Edge at $0.60 per million invocations.

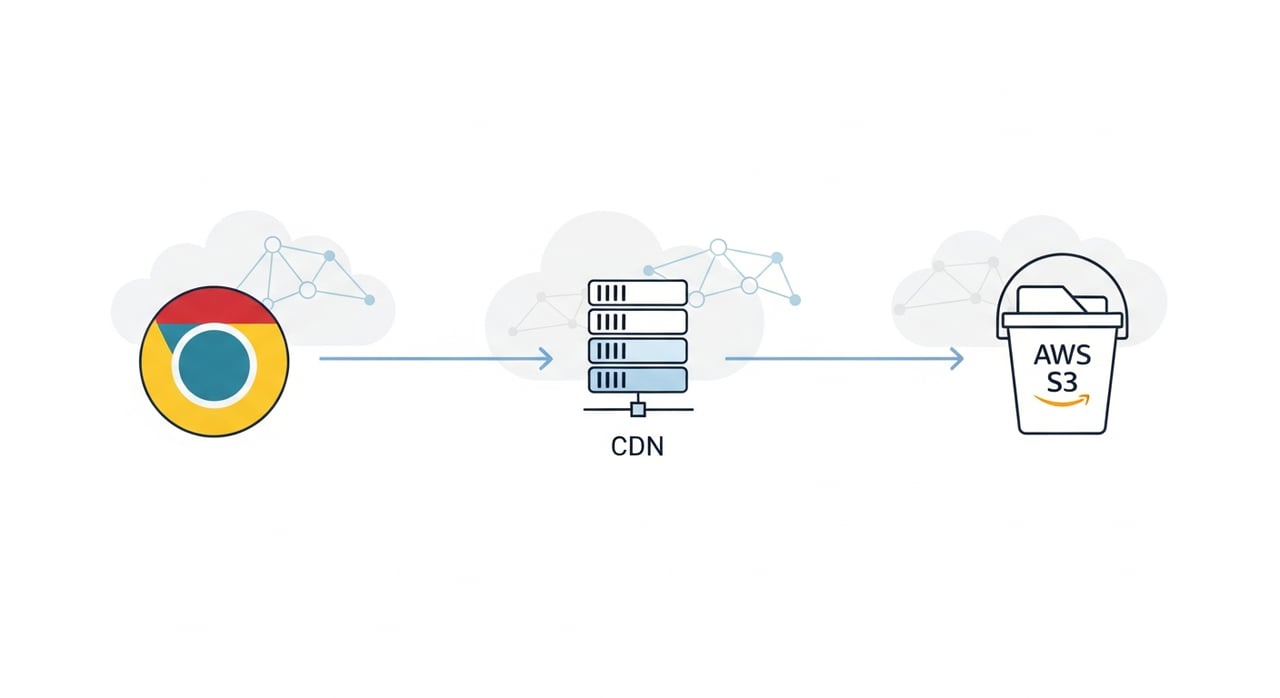

Architecture: How to Integrate CloudFront with an S3 Bucket

The reference architecture for a production S3 static website with CloudFront in 2026 looks like this:

1. Bucket configuration. Disable S3 static website hosting. Use the bucket's REST API endpoint (bucket-name.s3.region.amazonaws.com) as the origin, not the website endpoint. The website endpoint does not support OAC, forces HTTP-only origin fetch, and strips ETag headers that CloudFront uses for conditional GETs.

2. OAC creation and bucket policy. Create an OAC of type "S3" with signing behavior "Always." Attach it to the distribution's origin. Then update the bucket policy to allow s3:GetObject from the CloudFront service principal, scoped to the distribution's ARN. Block all public access on the bucket — no ACL exceptions, no policy exceptions.

3. Distribution behaviors. For a typical static site, one default behavior pointing at the S3 origin is sufficient. Set the viewer protocol policy to redirect-HTTP-to-HTTPS. Choose the CachingOptimized managed cache policy. Set the origin request policy to CORS-S3Origin if your assets are loaded cross-origin. For a SPA, add a custom error response mapping 403 and 404 to /index.html with a 200 status code and a TTL of 0.

4. Custom domain and TLS. Request an ACM certificate in us-east-1 — CloudFront still requires this region for certificates regardless of your bucket's region. Add the CNAME to the distribution's alternate domain names. Point your DNS to the distribution's domain via CNAME or Route 53 alias.

5. Validation. Fetch a known object with curl -I and inspect the response. You want X-Cache: Hit from cloudfront on the second request. Check Age to confirm TTL behavior. Verify that direct S3 URL access returns 403 — that confirms OAC is the only path in.

How to Secure an S3 Bucket with CloudFront OAC: The Policy Pattern

The bucket policy for OAC is tighter than the old OAI pattern. A correctly scoped policy uses a Condition block with StringEquals on AWS:SourceArn matching your distribution's ARN. This prevents any other CloudFront distribution — even within the same AWS account — from pulling objects out of your bucket. This is a meaningful improvement over OAI, where any distribution in the account using the same OAI could read the bucket.

For SSE-KMS buckets, you also need a KMS key policy granting cloudfront.amazonaws.com the kms:Decrypt permission, again scoped to the distribution ARN. Miss this step and every origin fetch returns a 403 with an XML AccessDenied body that CloudFront caches (often for 5 minutes by default), creating a cascading outage that looks like a permissions problem but is actually a caching problem layered on a permissions problem.

Cache Tuning: Why Most S3 CloudFront Setups Underperform

The most common failure mode is not a broken distribution. It is a distribution with a cache-hit ratio below 50%. As of Q2 2026, AWS reports that distributions using the CachingOptimized managed policy average 92% hit ratios for static assets — but distributions with custom cache keys that include query strings or cookies they don't actually need average 38%.

Rules to follow:

• Do not forward query strings to S3 unless your objects are actually keyed by them. S3 ignores query strings; CloudFront does not.
• Strip cookies for all static-asset behaviors. S3 does not read cookies. Every unique cookie string generates a separate cache entry.
• Set a minimum TTL of at least 86400 seconds (24 hours) for immutable assets with hashed filenames. Use Cache-Control: max-age=31536000, immutable on the S3 object metadata.
• For mutable content like index.html, set a short TTL (60–300 seconds) and use invalidations sparingly. CloudFront charges $0.005 per path after the first 1,000 invalidation paths per month.

Monitor your cache-hit ratio in the CloudFront console's "Cache Statistics" report. If it drifts below 85% for a static site, your cache key is almost certainly including unnecessary dimensions.

Diagnostics and Rollback: When the Distribution Breaks Production

Deployments go wrong. A CloudFront distribution update takes 3–8 minutes to propagate globally. During that window, some edges serve old config, some serve new config. If you push a bad OAC policy or a broken cache behavior, you cannot instant-rollback — you push a correcting update and wait another 3–8 minutes.

Diagnostic sequence for 403 errors after deployment

First, determine if the 403 is from S3 or from CloudFront. Check the response body: S3 returns XML with a Code element (AccessDenied, NoSuchKey); CloudFront returns its own HTML error page. If it is S3, the bucket policy or KMS policy is wrong. If it is CloudFront, check your geo-restriction, WAF, or signed-URL requirements.

Diagnostic sequence for low cache-hit ratio

Pull a CloudFront access log sample from the S3 logging bucket. Examine the cs-uri-query and cs-cookie columns. If you see unique values per request in either column and they are part of your cache key, that is your problem. Reduce the cache key. Redeploy. Wait for the TTL to expire on stale entries or issue a wildcard invalidation.

Rollback pattern

Maintain your last-known-good distribution configuration as a versioned CloudFormation template or Terraform state. If a deployment causes errors, apply the previous version. For zero-downtime rollbacks, use CloudFront continuous deployments (staging distributions) — promoted to production only after canary validation.

Cost Model: CloudFront + S3 Egress in 2026

CloudFront to S3 origin fetches are free — AWS does not charge S3 data transfer when the destination is CloudFront. This means your S3 egress bill for CDN-served content drops to near zero once your cache-hit ratio stabilizes above 90%. You pay CloudFront data transfer to viewers instead, which in 2026 starts at $0.085/GB for the first 10 TB/month in North America and Europe.

For high-volume workloads — media delivery, game patches, large SaaS asset bundles — CloudFront's per-GB rate compresses to roughly $0.020/GB at committed-use tiers. But it still adds up. A 500 TB/month workload on CloudFront's on-demand pricing runs approximately $15,000–$25,000/month depending on geographic distribution.

This is where alternative CDNs become worth evaluating. BlazingCDN offers S3-origin delivery with volume-based pricing that starts at $0.004/GB for up to 25 TB/month and scales down to $0.002/GB at 2 PB/month — roughly $1,500/month for 500 TB versus CloudFront's $15,000+. BlazingCDN provides 100% uptime SLA, fast scaling under demand spikes, and flexible origin configuration that points directly at S3 REST endpoints. For enterprises running large egress volumes — media companies, gaming studios, SaaS platforms serving globally — the cost difference at scale is substantial enough to fund an entire additional engineering headcount.

Multi-CDN Failover with S3 Origins

Running a single CDN in front of S3 introduces a single point of failure at the edge layer. Production-grade architectures in 2026 increasingly use DNS-based failover between two CDN providers, both pointing at the same S3 origin. Route 53 health checks probe each CDN's edge; if one fails, traffic shifts within the DNS TTL window. The S3 bucket policy needs to allow both CDN providers' origin-fetch mechanisms — OAC for CloudFront, IP-allowlist or token-auth for third-party CDNs.

Keep cache-key logic identical across both CDNs, or you will serve stale content from one edge while the other has already fetched a newer version. Version your assets with content hashes to sidestep this entirely.

FAQ

How do I force HTTPS between CloudFront and an S3 origin?

Use the S3 REST API endpoint (not the website endpoint) as your origin, and set the origin protocol policy to "HTTPS Only." The REST endpoint supports TLS natively. The website endpoint does not support HTTPS at all, which is one of the main reasons to avoid it in CloudFront configurations.

How do I use a custom domain with CloudFront and S3?

Request an ACM certificate in us-east-1 for your domain. Add the domain as an alternate domain name (CNAME) on the CloudFront distribution. Point your DNS to the distribution's *.cloudfront.net domain via CNAME or Route 53 alias record. The alias record is preferable because it works at the zone apex and doesn't incur Route 53 query charges.

Should I enable S3 Transfer Acceleration alongside CloudFront?

No. Transfer Acceleration optimizes uploads to S3, not downloads. For content delivery, CloudFront already routes viewer requests to the nearest edge. Enabling Transfer Acceleration on the bucket does not affect CloudFront origin fetches and adds unnecessary cost to any direct uploads.

How do I invalidate cached content after deploying new files to S3?

Use the CloudFront CreateInvalidation API with specific paths or a wildcard (/*). The first 1,000 invalidation paths per month are free; additional paths cost $0.005 each. For frequent deployments, prefer content-hashed filenames (app.3fa9c1.js) with long TTLs instead of invalidations — it is both cheaper and faster.

Can I use CloudFront Functions instead of Lambda@Edge for S3 origins?

Yes, for lightweight transformations. CloudFront Functions run at the edge in under 1 ms, cost $0.10 per million invocations (as of 2026), and support viewer-request and viewer-response events. They cannot make network calls or access the request body, so if you need origin-request manipulation or external lookups, Lambda@Edge is still required.

What cache-hit ratio should I target for an S3 static site behind CloudFront?

Above 90% for static sites with immutable, hashed assets. Between 70–85% is acceptable if you serve a mix of dynamic HTML and static assets. Below 70%, you are paying CDN transfer fees without meaningful origin offload — audit your cache key configuration immediately.

Run the Numbers This Week

Pull your CloudFront cache statistics report for the last 30 days. If your cache-hit ratio is below 85%, you are leaving money and latency on the table. Identify which behaviors include query strings or cookies in the cache key that S3 never reads. Remove them. Redeploy. Measure again after 48 hours. Then pull your S3 and CloudFront billing line items side by side and calculate your effective per-GB delivery cost. Compare it against what you would pay on a volume-committed CDN tier — whether that is CloudFront savings plans or an alternative provider. The difference funds your next infrastructure hire or your next performance optimization sprint. Either way, it is worth knowing the number.
