P2P CDN in 2026: Architecture, Failure Modes, and a Decision Framework

During the 2026 ICC Champions Trophy final stream in February, peer-assisted delivery networks offloaded an estimated 60–78% of total video traffic from origin infrastructure for multiple major OTT providers serving the South Asian market. That single event crystallized what has been building for three years: a P2P CDN layer is no longer experimental middleware—it is load-bearing production infrastructure. Yet the engineering tradeoffs are sharper than the marketing suggests, and the failure modes are poorly documented. This article gives you three things: an updated architectural model of how peer-to-peer CDN topologies actually work in 2026, a failure-mode catalog drawn from production incidents, and a workload-profile decision matrix so you can determine whether hybrid CDN P2P belongs in your stack—or whether it will cost you more than it saves.

How a Peer-to-Peer CDN Actually Works in 2026

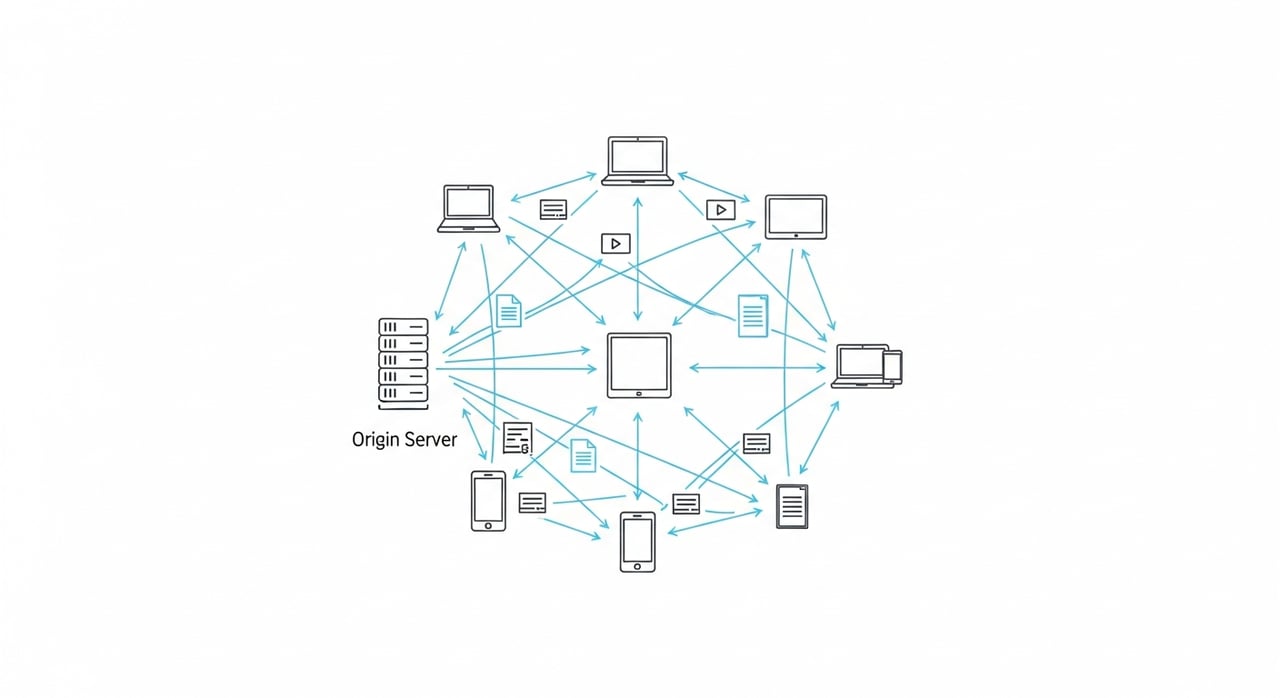

The basic premise is unchanged: viewers who already hold chunks of a video segment serve those chunks to nearby peers over WebRTC data channels, reducing the byte volume that edge servers must deliver. What has changed—significantly—is the signaling and orchestration layer. As of Q1 2026, the dominant implementations use a three-tier model:

• Tracker/orchestrator (server-side): A lightweight coordination service that maintains a real-time map of peer availability, NAT type, estimated uplink capacity, and segment inventory. Modern orchestrators run inference on per-session telemetry to predict churn 10–30 seconds ahead.
• Peer mesh (client-side): A WebRTC CDN data-channel mesh where each viewer can simultaneously upload to 3–6 peers. Chunk selection follows a rarest-first or deadline-aware algorithm depending on live versus VOD mode.
• Edge fallback (server-side): A traditional CDN that serves 100% of the first 2–4 seconds of any session (the "cold start" window) and fills any gap when peers cannot deliver a chunk before its playout deadline. This is the hybrid CDN P2P model in practice.

The critical 2026-era shift is in chunk granularity. Earlier P2P video CDN implementations operated on CMAF segments of 2–6 seconds. Current systems—particularly for live streaming—slice segments into sub-second "micro-chunks" of 200–500 ms, which reduces playout-deadline pressure and raises offload ratios from the 40–55% range common in 2024 to 60–80% under favorable conditions (high peer density, stable uplinks).

Seven Benefits—Quantified, Not Just Listed

1. Bandwidth Cost Reduction

The dominant cost driver. At 70% offload on a 500 Tbps live event, a P2P CDN layer can cut egress spend by roughly the same ratio. For an OTT platform delivering 10 PB/month, that translates to six-figure monthly savings even against aggressively discounted CDN contracts.

2. Elastic Capacity Without Preflight

Each new viewer adds uplink capacity. A 2-million concurrent-viewer stream generates an estimated 4–8 Tbps of aggregate peer uplink at typical broadband speeds—capacity that requires zero procurement lead time.

3. Last-Mile Latency Improvement

Peers in the same ISP or subnet deliver chunks over paths that never traverse an IX. Measurements on Southeast Asian FTTH networks in early 2026 showed P2P-served chunks arriving 30–60 ms faster than edge-served chunks for intra-ISP peer pairs.

4. Origin and Edge Shielding

Decentralized CDN delivery absorbs the demand spike, so origin and mid-tier caches see a flatter traffic curve. This reduces the probability of cache stampede during flash-crowd events.

5. Geographic Fill-In

In regions where your CDN has sparse PoP coverage, local peers act as de facto micro-caches. This is especially relevant for live streaming audiences in Sub-Saharan Africa, parts of South America, and Central Asia.

6. Resilience Against Single-Provider Outages

If your primary CDN suffers a regional degradation—a recurring reality—the peer mesh continues serving chunks already in the swarm. The edge fallback shifts to a secondary CDN, and the P2P layer bridges the gap.

7. Improved QoE at Scale Inflection Points

The inverse-scaling property of P2P (more viewers = more capacity) directly counters the traditional CDN model (more viewers = higher load on fixed infrastructure). Rebuffering ratios at the 95th percentile drop measurably once peer density crosses a threshold—typically around 200–500 concurrent viewers per orchestrator shard for live content.

Failure Modes and Production Incidents

This section does not exist in most P2P CDN literature, and its absence is a disservice. Here are the failure patterns that actually bite in production:

Cold-Start Starvation

When a live stream begins, there are no peers. The first 10–30 seconds are 100% edge-served. If your edge tier is undersized because you planned for 70% offload from minute one, you will see rebuffering spikes at stream start. Mitigation: always capacity-plan edge for full load during the cold-start window.

Asymmetric NAT Poisoning

Symmetric NAT on mobile carriers and some enterprise networks prevents direct WebRTC connections. TURN relay fallback works but eliminates the latency and cost benefit. In 2026 measurements, 15–25% of mobile viewers in carrier-grade NAT environments cannot participate as uploaders.

Peer Churn Cascade

During halftime of a live event, 30–40% of viewers leave simultaneously. The peer mesh loses capacity faster than the orchestrator can reassign chunks. If the edge-fallback tier has already scaled down (as autoscalers tend to do when offload is high), you hit a double squeeze. Mitigation: implement churn-predictive autoscaling on the edge tier, or maintain a minimum edge capacity floor regardless of offload ratio.

Privacy and Data-Path Concerns

Each peer exposes its IP address to other peers through WebRTC ICE candidates. In jurisdictions with strict privacy regulations, this requires explicit disclosure and sometimes consent. Ignoring this creates legal exposure, not just technical risk.

Inconsistent Uplink Quality

A peer on a 5 Mbps ADSL uplink cannot reliably serve 4K chunks. Orchestrators must measure and continuously re-evaluate peer uplink capacity. Naive implementations that assume uniform peer capability produce chunk-delivery failures and visible quality drops.

Workload-Profile Decision Matrix

Not every delivery workload benefits from a P2P layer. Use this matrix to evaluate fit:

The core takeaway: P2P CDN for live streaming with high concurrency is a proven cost optimization. P2P for long-tail VOD or ultra-low-latency use cases is an engineering distraction.

AI-Driven Orchestration in Hybrid CDN P2P Stacks

The 2026 generation of peer-assisted CDN orchestrators has moved beyond rule-based peer selection. Lightweight ML models running at the orchestrator predict three things per session: peer uplink stability (will this peer be able to serve for the next 30 seconds?), churn probability (is this viewer about to leave?), and chunk demand (which segments will be requested in the next 5–10 seconds?). These predictions feed a real-time assignment engine that decides, per chunk, whether to source from peer or edge. The result is a system that adapts its offload ratio dynamically—pushing offload higher when peer conditions are favorable and pulling it back to edge when the mesh is thin.

Where Traditional CDN Still Wins—and How to Complement It

P2P cannot replace your edge tier. It complements it. The edge handles cold starts, DRM license delivery, manifest requests, API calls, and any content where peer density is too low to be useful. For the pure-CDN layer of your stack—the origin-to-edge delivery that must be fast, predictable, and always available—the economics still favor a dedicated provider. BlazingCDN's media delivery infrastructure offers the kind of edge reliability that a hybrid P2P architecture depends on as its fallback tier, with 100% uptime SLA and volume pricing that scales down to $0.002/GB at 2 PB/month commitments—a cost structure that makes the combined P2P + edge model financially viable even for mid-size OTT operators. Clients including Sony use BlazingCDN as part of multi-CDN strategies where edge cost and stability directly determine total delivery economics.

FAQ

What is a P2P CDN and how does it differ from a traditional CDN?

A P2P CDN uses viewer devices as transient content sources, distributing chunks of video or data between peers via WebRTC data channels while maintaining a traditional edge server layer as fallback. The key architectural difference is that capacity scales with audience size rather than with provisioned infrastructure. The edge tier is still required for cold starts, low-density scenarios, and non-cacheable requests.

How does a peer-to-peer CDN work for live streaming specifically?

For live streaming, the orchestrator assigns micro-chunks (200–500 ms of video) to peers based on real-time uplink capacity and playout deadlines. Each viewer simultaneously downloads from 2–4 peers and the edge, with the player assembling chunks by deadline. If a peer chunk arrives late, the edge-served copy fills the gap. This architecture is most effective above roughly 500 concurrent viewers per content stream.

What offload ratio can I realistically expect from a hybrid CDN P2P deployment?

It depends entirely on peer density and network conditions. As of 2026, well-tuned deployments report 60–80% offload for large live events (100K+ concurrent), 30–55% for mid-size live streams, and 5–15% for long-tail VOD. Mobile-heavy audiences yield lower offload due to carrier-grade NAT limitations. Plan your edge capacity for the worst-case offload, not the average.

Is WebRTC CDN delivery secure and private?

WebRTC data channels are encrypted via DTLS-SRTP, so chunk data in transit is protected. The privacy concern is IP exposure: each peer sees the IP addresses of peers it connects to via ICE candidates. In GDPR and similar regulatory contexts, this peer-IP exposure requires user disclosure or consent. DRM-protected content still requires license acquisition from a server—P2P only distributes encrypted media segments, not decryption keys.

Does P2P CDN work on mobile devices?

Yes, but with caveats. Mobile browsers support WebRTC data channels, and native SDKs exist for iOS and Android. However, mobile uplink speeds are lower and more variable, carrier-grade NAT blocks direct peer connections for 15–25% of mobile users, and background tab behavior in mobile browsers can terminate WebRTC connections. Effective mobile P2P participation requires explicit SDK integration and network-type awareness in the orchestrator.

When should I avoid deploying a P2P CDN layer?

Avoid it for sub-2-second glass-to-glass latency requirements (peer relay adds too much jitter), for audiences with very low concurrency per title (long-tail VOD), for content served primarily to corporate networks behind restrictive firewalls, and for any scenario where regulatory constraints prohibit peer-IP exposure without consent.

What to Measure This Week

If you are evaluating a hybrid P2P architecture, start with one instrumentation pass: measure your actual concurrent-viewer count per content title at the 50th and 95th percentile, segmented by ASN. That gives you the peer-density floor. If your P50 concurrency per title per ASN is below 50 viewers, a P2P layer will not move the needle on cost or quality. If it is above 500, you are leaving money on the table without one. Run the numbers against your current CDN egress bill, and the decision will make itself.
