CloudFront Origin Failover: The 2026 Production Playbook

A single misconfigured health check threshold cost a mid-tier streaming platform 23 minutes of partial outage in Q1 2026. The primary S3 origin was healthy. The secondary was healthy. CloudFront never failed over because the error codes returned—intermittent 503s mixed with 200s—fell below the origin group's trigger sensitivity. The fix took four lines of configuration. The revenue loss was six figures. CloudFront origin failover works, but only when you understand its actual failure semantics, not the summary version in the docs. This article gives you the production-grade playbook: origin group architecture, failover trigger mechanics as of 2026, diagnostic patterns for when failover doesn't fire, and a rollback strategy most guides skip entirely.

How CloudFront Origin Groups Actually Work in 2026

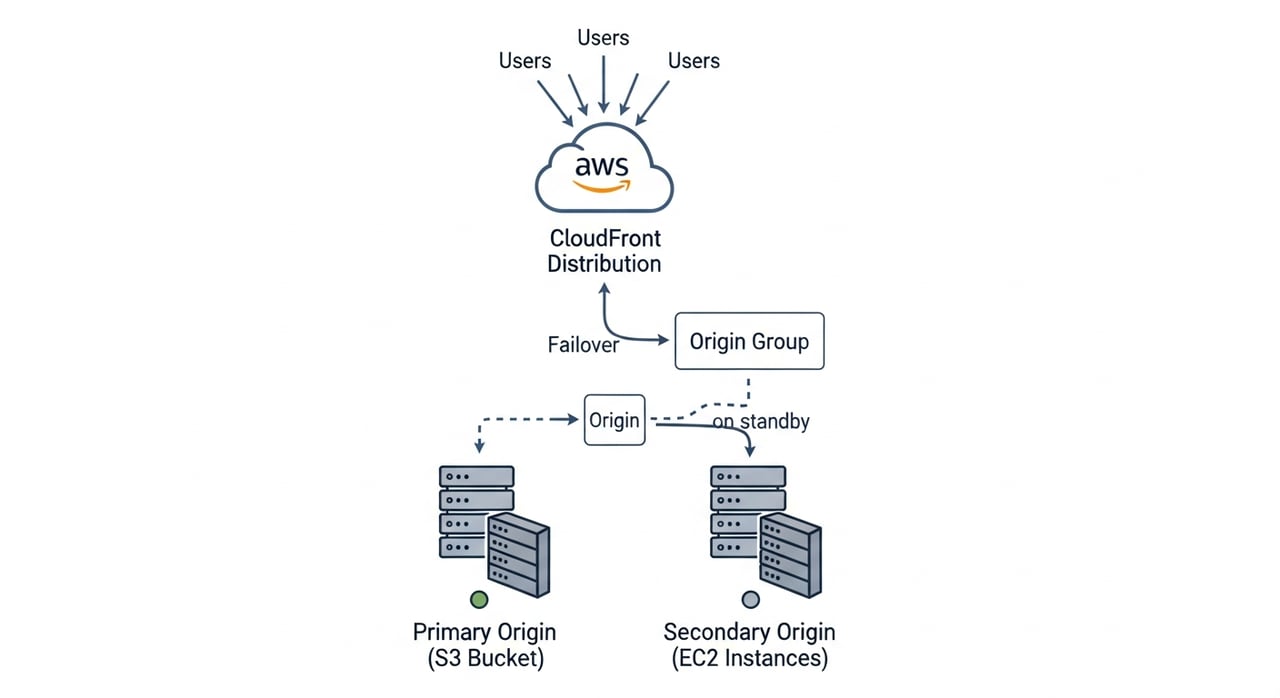

An origin group binds exactly two origins: primary and secondary. When CloudFront sends a viewer request to the primary origin and receives a response matching one of the configured failover status codes, it replays the identical request to the secondary origin. This is per-request failover, not circuit-breaker failover. Every request hitting the primary origin that returns an acceptable response stays on the primary—even if the secondary is faster or healthier overall.

As of May 2026, CloudFront supports failover on the following HTTP status codes: 500, 502, 503, 504, 403, and 404. You select which codes trigger failover per origin group. The critical architectural implication: if your primary returns a 200 with a degraded or empty response body, failover will never engage. CloudFront evaluates HTTP status codes only, not response latency, body size, or content correctness.

Origin Group Limits You Should Design Around

Each CloudFront distribution supports up to 25 origins and up to 25 origin groups (as of 2026). Each origin group contains exactly two origins—no fan-out, no tertiary fallback. If you need three-tier failover (primary, warm standby, cold standby), you implement it at the origin layer, not in CloudFront. A common pattern is running an ALB as the secondary origin with its own target group failover, giving you two levels of resilience without exceeding CloudFront's origin group constraints.

Cache behaviors map to either a single origin or an origin group—never both. A given path pattern routes to one origin group, and that origin group handles failover internally. You can assign different origin groups to different path patterns, which means your static assets, API calls, and media segments can each have independent failover configurations.

Configuring CloudFront Origin Failover: What Changed This Year

AWS updated origin failover behavior in late 2025 and early 2026 in two meaningful ways. First, connection timeout granularity for custom origins now supports 1-second increments down to 1 second (previously, the practical minimum was 4 seconds for most configurations). This matters because a tight connection timeout combined with 2 retry attempts can trigger failover within 3 seconds instead of the 12+ seconds that was common in older setups. Second, origin access control (OAC) for S3 origins is now the default path—origin access identity (OAI) still works, but new distributions push you toward OAC, and configuring origin groups with mixed OAC/OAI origins introduces subtle IAM permission mismatches that cause silent 403 failover loops.

Step-by-Step: Origin Group with S3 Primary and ALB Secondary

Start by creating two origins in your distribution: an S3 bucket (primary) and an ALB endpoint (secondary). Attach OAC to the S3 origin with a bucket policy granting the distribution's service principal read access. For the ALB, configure a custom origin with HTTPS-only, TLS 1.3, and a connection timeout of 2 seconds with 2 connection attempts.

Create the origin group. Select the S3 origin as primary, the ALB as secondary. Enable failover on 500, 502, 503, and 504. Deliberately exclude 403 and 404 unless your application uses those codes to signal origin-level outages—including them when your app legitimately returns 404 for missing resources will cause unnecessary failover traffic and inflate your ALB bill.

Assign the origin group to the relevant cache behavior. Set the origin request policy to match headers your secondary origin needs—if the ALB expects a Host header and you're forwarding the CloudFront domain instead, the secondary will return its own error, and you'll have a cascading failure on both origins.

Failover Trigger Mechanics: The Gaps That Bite You

The most common production failure pattern with CloudFront origin failover is not "failover didn't exist." It's "failover didn't fire." Three root causes dominate.

Status code mismatch. Your origin returns a 200 with an error body (common in legacy REST APIs that wrap errors in 200 responses). CloudFront sees a success and serves the broken response to viewers. Fix: enforce HTTP-correct status codes at the origin, or place a Lambda@Edge origin-response function that inspects response bodies and rewrites status codes before CloudFront evaluates failover.

Timeout vs. error ambiguity. If your primary origin accepts the TCP connection but stalls on response delivery, CloudFront waits for the full response timeout (default: 30 seconds) before treating it as a failure. For viewer-facing requests, 30 seconds is an eternity. Reduce the origin response timeout to 4–10 seconds depending on your origin's p99 latency, and test that your secondary can handle the surge when failover activates.

Cached error responses. If a 503 from the primary is cached (because your cache policy doesn't exclude error responses or your error caching minimum TTL is nonzero), viewers continue receiving the cached 503 even after the primary recovers—and the secondary never sees the traffic because CloudFront serves from cache. Set the error caching minimum TTL to 0 for any status codes you've enabled as failover triggers.

Diagnostics and Rollback: The Section Every Other Guide Skips

When failover fires in production, you need three things: proof that it fired, visibility into secondary origin behavior, and a clean rollback path when the primary recovers.

Detecting Failover in Real Time

CloudFront access logs include the x-edge-detailed-result-type field. When failover occurs, this field shows OriginGroupFailover. Ship your access logs to S3 and query with Athena, or stream them via CloudFront real-time logs to Kinesis Data Firehose. Set a CloudWatch Logs Insights query on the OriginGroupFailover value and attach an alarm. In 2026, real-time logs support sub-30-second delivery latency, which makes this operationally useful for incident detection, not just post-mortems.

Rollback After Primary Recovery

CloudFront doesn't require manual rollback. Because failover is per-request, once the primary starts returning non-failover status codes, new requests automatically route back to it. But there are two traps. First, if the secondary origin served responses that got cached with long TTLs, viewers will continue hitting the cached secondary responses. Invalidate the paths that were served during the failover window. Second, if your primary needs time to warm up (JIT compilation, connection pool hydration), a sudden return of full traffic can cause a second failure. Use Route 53 health checks at the origin level to gate traffic return, or implement a gradual warmup behind the ALB target group.

Testing Failover Without Impacting Production

Deploy a staging distribution with identical origin group configuration. Use the primary origin's WAF or security group to block the staging distribution's IP ranges, forcing every request to fail over. Validate that the secondary origin responds correctly, that access logs record OriginGroupFailover, and that your alerting pipeline fires. Run this test monthly. Failover configurations that are never tested are failover configurations that fail when invoked.

Multi-Origin Cost and Architecture Considerations

Running a secondary origin that handles failover traffic means paying for that infrastructure even when it sits idle. For S3 secondaries, the cost is negligible—storage plus request pricing. For ALB or EC2 secondaries, you carry the cost of idle compute and load balancer hours. Cross-region failover (e.g., primary in us-east-1, secondary in eu-west-1) adds cross-region data transfer charges on top.

If your failover architecture pushes monthly bandwidth into the 50–500 TB range, the cost math shifts. CloudFront's per-GB pricing at those volumes ranges from $0.020 to $0.085 depending on geography. For teams evaluating CDN cost alongside failover resilience, BlazingCDN's CDN comparison is worth benchmarking against—it delivers fault tolerance and 100% uptime SLAs comparable to CloudFront at significantly lower per-TB rates, starting at $4/TB for volumes up to 25 TB and scaling to $2/TB at 2 PB+. Trusted by clients including Sony, it handles demand spikes with fast scaling and flexible origin configuration. For enterprises running multi-origin architectures at scale, the cost delta is material.

Decision Matrix: When to Use Origin Groups vs. Application-Layer Failover

Use both in combination for defense in depth. Origin groups handle fast per-request failover at the edge. Route 53 failover handles origin-region evacuation. They operate at different layers and different time scales—they complement, not replace, each other.

FAQ

How many origins can a CloudFront origin group contain?

Exactly two: one primary and one secondary. As of 2026, AWS has not increased this limit. If you need more than two tiers of failover, implement additional failover logic at the origin layer using ALB target groups or Route 53 health-checked routing.

Does CloudFront origin failover add latency to successful requests?

No. When the primary origin responds with a non-failover status code, the request completes normally with no additional overhead. Latency is added only on failover, where CloudFront replays the request to the secondary origin after the primary returns a trigger status code or times out.

Can I use Lambda@Edge to customize failover behavior?

Yes. A Lambda@Edge function on the origin-response event can inspect response bodies, rewrite status codes, or add custom headers before CloudFront evaluates failover triggers. This is the standard workaround for origins that return 200 status codes with error payloads.

What happens if both the primary and secondary origins fail?

CloudFront returns the error response from the secondary origin to the viewer. There is no automatic tertiary fallback. Configure a custom error page in the distribution to present a branded error experience rather than a raw HTTP error, and ensure your monitoring fires on sustained secondary-origin failures.

Is CloudFront origin failover supported with origin shield enabled?

Yes. Origin shield sits between the edge caches and the origin group. Failover evaluation happens at the origin shield layer, which means failover requests benefit from the same regional cache consolidation. Enable origin shield on both the primary and secondary origins for consistent cache behavior across failover events.

How do I prevent failover from triggering on legitimate 404 responses?

Exclude 404 from the origin group's failover status codes. Only include 404 if your application uses it as a signal for origin unavailability. If some paths use 404 legitimately and others use it as a failure signal, split those paths into separate cache behaviors with different origin group configurations.

Your Move This Week

Pull your CloudFront access logs from the past 30 days and query for x-edge-detailed-result-type = OriginGroupFailover. If you find zero results, that either means your origins are rock-solid or your failover has never been tested under real conditions. Spin up a staging distribution, block the primary, and confirm that your secondary actually serves the content you expect—with correct headers, correct cache-control directives, and correct status codes. Then check your error caching minimum TTL. If it's anything other than 0 for your failover trigger codes, fix it before your next on-call rotation. Failover that has never fired is not failover. It's a hope.
