Video Bitrate and Quality Ladders: How to Build One Properly

Working result: a seven-rung adaptive bitrate ladder spanning 400 kbps to 6 Mbps, with rungs spaced 1.5x to 1.65x apart and bits-per-pixel held between 0.06 and 0.14 for H.264. Budget roughly 90 minutes to design and encode it from one mezzanine file, plus a day of playback telemetry before you trust it. Video bitrate is not quality; it is the ceiling on how much detail the encoder can preserve at a given resolution and frame rate. The ladder decides which ceiling each viewer gets, and it sets your delivery cost: 1.44 GB per viewer hour at an average 3.2 Mbps.

What an adaptive bitrate ladder actually controls

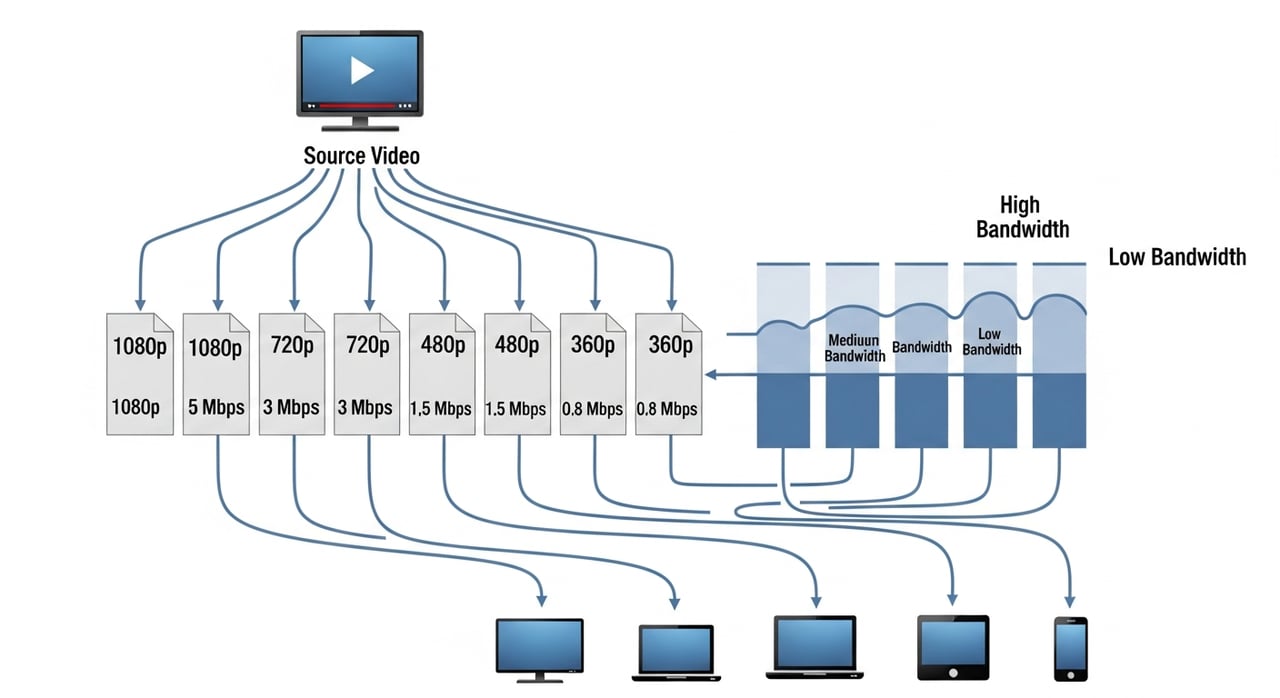

An adaptive bitrate ladder is the set of encoded renditions a player can switch between, each defined by resolution, frame rate, target bitrate, and rate-control caps. The player picks a rung from its throughput estimate and buffer level; your ladder decides what options it has.

Three things follow from ladder design, and only these three. First, the quality ceiling per network condition. Second, switch behavior: rungs too close together cause oscillation, rungs too far apart cause a stall or a visible drop. Third, cost, because the average delivered bitrate across your audience is the only bitrate that shows up on the invoice.

Prerequisites

• A clean mezzanine source: constant frame rate, progressive, at least 1080p, no prior heavy compression.
• An encoder with capped VBR support (x264, x265, SVT-AV1, or a cloud transcoder that exposes maxrate and bufsize).
• A packager producing HLS or DASH with segment durations of 2, 4, or 6 seconds.
• Player telemetry: delivered bitrate, rebuffer ratio, startup time, and rendition switch counts. Without these you are guessing.

How to build an encoding ladder, step by step

Step 1: Pull the throughput distribution of your real audience

Query the last 30 days of session data for measured throughput at p10, p50, and p95, split by device class. Mobile-heavy catalogs commonly sit at p10 near 1.5 Mbps and p50 near 6 Mbps in 2025 measurements; connected-TV audiences run several times higher. Your bottom rung must be playable at p10, not at your office Wi-Fi.

Step 2: Set the top rung from source complexity and reach, not from vanity

The top rung should be reachable by at least the top 20% of sessions with 25% headroom. If p80 throughput is 8 Mbps, a 6 Mbps top rung is the practical maximum for H.264 1080p. Adding a 12 Mbps rung nobody sustains only adds storage and a switch target that triggers rebuffers.

Step 3: Space the adaptive bitrate ladder rungs 1.4x to 1.65x apart

Ratios below 1.25x produce oscillation: the quality delta is invisible, but every switch costs a segment boundary and a buffer refill. Ratios above 2x mean a downshift is a visible cliff. The 1.5x band is the working compromise, and it is why a 400 kbps to 6 Mbps range needs seven rungs, not four or twelve.

Step 4: Pin resolution to bitrate with bits per pixel

Bits per pixel equals bitrate in bits per second divided by width times height times frame rate. For H.264 at 30 fps, keep it between 0.06 and 0.11 for 540p and above, and allow up to 0.14 at the smallest rungs where overhead dominates. Below 0.05 you get blocking; above 0.13 at high resolutions you are paying for bits the encoder does not need.

rung  resolution   video kbps  maxrate  bufsize  bits per pixel
7     1920x1080    6000        6600     12000    0.096
6     1920x1080    4000        4400      8000    0.064
5     1280x720     2600        2860      5200    0.094
4      960x540     1600        1760      3200    0.103
3      768x432     1000        1100      2000    0.100
2      640x360      650         715      1300    0.094
1      416x234      400         440       800    0.137

Rung 6 sits deliberately low on bits per pixel: at 4 Mbps, 1080p beats an upscaled 720p on most content, and it gives the player a 1080p option before it commits to 6 Mbps.

Step 5: Encode with capped VBR and identical GOP structure on every rung

Set maxrate to 1.1x the target and bufsize to 2x maxrate. Force keyframes at a fixed interval equal to the segment duration, disable scene-cut keyframes, and use the same interval on all seven rungs. Misaligned GOPs are the single most common cause of switch artifacts in ABR streaming.

encoder parameters, rung 5 (1280x720 at 2600 kbps, 2 second segments):
  -c:v libx264 -preset slow -profile:v high -level 4.0
  -b:v 2600k -maxrate 2860k -bufsize 5200k
  -g 60 -keyint_min 60 -sc_threshold 0
  -r 30 -vf scale=1280:720
  -c:a aac -b:a 128k -ac 2 -ar 48000

Step 6: Advertise honest numbers in the master manifest

BANDWIDTH must be the peak segment bitrate including audio and container overhead, not the target. Players use BANDWIDTH for admission and AVERAGE-BANDWIDTH for steady-state decisions; inflating either pushes viewers down a rung they did not need to leave.

#EXTM3U
#EXT-X-VERSION:6
#EXT-X-STREAM-INF:BANDWIDTH=6750000,AVERAGE-BANDWIDTH=6180000,RESOLUTION=1920x1080,FRAME-RATE=30.000,CODECS="avc1.640028,mp4a.40.2"
v7/index.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=4550000,AVERAGE-BANDWIDTH=4180000,RESOLUTION=1920x1080,FRAME-RATE=30.000,CODECS="avc1.640028,mp4a.40.2"
v6/index.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=3000000,AVERAGE-BANDWIDTH=2760000,RESOLUTION=1280x720,FRAME-RATE=30.000,CODECS="avc1.64001f,mp4a.40.2"
v5/index.m3u8
#EXT-X-STREAM-INF:BANDWIDTH=520000,AVERAGE-BANDWIDTH=470000,RESOLUTION=416x234,FRAME-RATE=30.000,CODECS="avc1.42c015,mp4a.40.2"
v1/index.m3u8

The remaining rungs follow the same pattern with the values from the ladder table.

How to validate the ladder before it ships

Fetch every media playlist and compare segment durations rung by rung: the boundaries must match to the millisecond. Then probe two or three segments per rung and confirm measured peak bitrate lands within 10% of the advertised BANDWIDTH value.

On the playback side, run a 500-session canary and check four numbers: rebuffer ratio under 0.5%, startup time p95 under 2 seconds, switches per 10 minutes under 6, and at least 60% of delivered seconds on rung 5 or above for a desktop-heavy audience. If switches per 10 minutes exceeds 12, two rungs are too close.

Rollback

Publish the new ladder under a separate manifest path and route a traffic slice to it by URL, keeping the previous renditions on disk and cache-warm for 24 hours. Rollback is a routing change, not a re-encode. Never mutate an existing master playlist in place while sessions are live: players that already parsed it will request variants that no longer resolve.

Failure modes: symptom, cause, fix

Four of these five failures are rate-control or manifest metadata problems, not encoder quality problems, which is why tuning presets before fixing maxrate and BANDWIDTH wastes a week.

What ladder design costs per viewer hour

Average delivered bitrate times 0.45 gives gigabytes per viewer hour. Everything else is arithmetic. Assumptions below: 1,000,000 viewer hours per month, $2.50 per TB effective egress, audio included in the delivered bitrate.

Removing 1.5 Mbps of average delivered bitrate cuts monthly egress by about 38% at the same viewing volume, which is a larger lever than any CDN negotiation at this scale.

Egress price is the multiplier on that number. BlazingCDN publishes flat pay-as-you-go tiers as of 2026: $1,500 per month for up to 500 TB and $2,500 per month for up to 1,000 TB, with additional traffic at $0.0025 per GB and rates down to $2 per TB above 2,000 TB. At 1.44 GB per viewer hour that works out to roughly $0.0036 in delivery cost per viewer hour, with stability and fault tolerance comparable to Amazon CloudFront at a materially lower cost per TB. Compare against your current effective rate using the published pay-as-you-go CDN pricing tiers for streaming egress before you touch the ladder.

Tuning once it works

Per-title encoding is the highest-value next move: animation and talking-head content reach the same quality 30–50% below the ladder targets, while sport and high-grain film need the full allocation. Implement it as a per-asset multiplier on the ladder rather than a separate ladder per title, so packaging and manifest logic stay unchanged.

The trade-offs are real. Seven rungs cost roughly 1.8x the encoding minutes and storage of four rungs. HEVC or AV1 cuts bitrate 30–50% at equal quality but doubles or quadruples encode time and forces a second ladder for devices without hardware decode. Per-title analysis adds a measurement pass and a quality-regression risk on outlier content. Pick the one whose cost you can actually pay every day, not the one with the best benchmark chart.

FAQ: adaptive bitrate ladder design

How many rungs should an adaptive bitrate ladder have?

Five to eight rungs covers almost every catalog. The count follows from the bitrate range divided by 1.5x spacing: a 400 kbps to 6 Mbps range yields seven rungs. Fewer than five leaves visible quality cliffs on unstable mobile networks; more than eight adds encoding and storage cost for switches viewers cannot perceive.

What bitrate should the top rung of a 1080p ladder use?

For H.264 at 30 fps, 5,000 to 6,500 kbps covers most content, which is 0.08 to 0.10 bits per pixel. High-motion sport justifies 8,000 kbps; static presentation video is fine at 3,500. Check reach first: a top rung that only 5% of sessions sustain is storage spent on nobody.

Do HEVC and AV1 let you halve the bitrate of every rung?

No. Realistic savings are 30–50% at equal perceived quality, and they are largest at low bitrates and high resolutions. Rebuild the ladder from bits-per-pixel targets around half the H.264 values rather than scaling existing numbers, and keep an H.264 ladder for devices without hardware decode.

Why do viewers on fast connections still get a low bitrate rendition?

Usually the manifest, not the network. Inflated BANDWIDTH values, an oversized bufsize producing spiky segments, or a top rung with no headroom all make players stay conservative. Verify advertised bandwidth against measured peak segment bitrate before changing encoder presets or blaming the ABR streaming algorithm.

Run this on your own catalog this week

Export one week of playback sessions and build two histograms: delivered bitrate per second viewed, and rendition switches per session. If more than 25% of delivered seconds land on your bottom two rungs, your ladder is too top-heavy for the audience you actually have. If the switch histogram has a long tail past 12 per 10 minutes, two rungs are too close together and one should be deleted. Then compute bits per pixel for every rung and delete any rung above 0.13. Post your before-and-after average delivered bitrate; that single number is the honest scoreboard for ladder work.
