LL-HLS in Production: Achieving Sub-3-Second Live Latency

At 6-second segments, classic HLS does not miss your latency target by a little. It misses it by an entire segment pipeline. In production, the failure mode is usually not encoder speed or bitrate ladder design. It is playlist discovery delay, cache revalidation behavior, origin fan-out on partial objects, and player hold-back settings that quietly stack into 8 to 20 seconds of glass-to-glass delay even when every individual component looks healthy. If you want low latency HLS under 3 seconds, you have to treat LL-HLS as a control-plane and cache-behavior problem, not just a packaging feature.

Why low latency HLS still misses sub-3-second targets in production

Apple low-latency HLS added the protocol pieces operators actually needed: partial segments, blocking playlist reload, delta updates, preload hints, rendition reports, and explicit server control metadata. On paper, that is enough to get close to real-time. In production, the path to sub-3-second live latency usually breaks in three places.

First, the encoder and packager produce parts quickly, but the client does not discover them quickly because blocking reload is disabled, miscached, or terminated too early by an intermediate. Second, the CDN sees part requests as low-byte, high-request-rate traffic and origin shield collapses under request amplification. Third, players ship with conservative hold-back and part-hold-back values because rebuffering is more visible than latency. The result is a system that advertises LL-HLS but behaves like short-segment HLS.

Operationally, the target is simple: keep end-to-end latency under 3 seconds at p50, under 4 seconds at p95, and avoid p99 excursions above 6 seconds during bitrate shifts, cache misses, or mild packet loss. Those tail numbers matter more than the demo-case median because viewers notice drift and score spoilers when the long tail stretches, not when your median looks pretty.

Benchmarking low-latency HLS: where the seconds actually go

The protocol itself does not consume your latency budget. Your defaults do. A realistic sub-3-second budget for low latency HLS with 1-second segments and 200 millisecond parts looks roughly like this:

That budget is consistent with the LL-HLS design Apple documented: clients can block on playlist reloads, request partial segments as they become available, and use server-advertised hold-back and part-hold-back values to stay near the live edge. The protocol can support low latency. The pathologies are operational.

As of 2026, a good production envelope for low-latency HLS over managed networks and mainstream broadband looks like this: viewer RTT to edge below 80 milliseconds at p50, below 180 milliseconds at p95; request loss low enough that retransmission does not repeatedly stall small-part delivery; and edge cache hit ratio for media parts above 97 percent once an event is warm. If your part cache hit ratio drops from 99 percent to 94 percent during a spike, your latency curve usually degrades before your origin bandwidth graph looks scary.

The non-obvious point is request density. Moving from 6-second segments to 1-second segments with 200 millisecond parts multiplies control traffic and cache churn. For one rendition, a viewer that previously fetched one segment every 6 seconds can now drive five part fetches per second plus playlist reloads. Multiply by audio, subtitles, and bitrate switches and the request-rate problem becomes more important than aggregate throughput. This is why many teams can show low latency HLS in staging, then miss it under real concurrency.

How to achieve sub-3-second live latency with LL-HLS

Use 1-second segments and 200 to 333 millisecond parts

The sweet spot for most production low latency HLS deployments is 1-second target duration with 3 to 5 parts per segment. Parts smaller than 200 milliseconds push request overhead hard and increase cache inefficiency. Parts much larger than 333 milliseconds make player catch-up coarse and increase live-edge jitter after stalls. The usual production compromise is 4 parts per second at 250 milliseconds, or 5 parts per second at 200 milliseconds for premium sports and auction-style interactivity.

Do not confuse encoder GOP cadence with HLS segment duration. If you segment at 1 second but your keyframe interval is 2 seconds with scene-cut enabled, you will get ugly boundary behavior, partial decode inefficiency, or muxer buffering that defeats the point of LL-HLS. Fixed GOP, aligned across renditions, is still table stakes.

Blocking playlist reload is the feature that matters most

Teams often focus on parts because parts are visible in manifests. Blocking reload is what actually cuts discovery delay. Without it, your player polls and inevitably misses updates by some fraction of target duration. Apple made blocking playlist reload a core part of low-latency HLS for exactly this reason. If your CDN, proxy, shield, or origin times out those held requests too aggressively, your low latency HLS stack silently degrades into polling HLS.

The practical tuning rule is simple: allow blocked playlist requests to remain open long enough to cover expected part publication cadence plus RTT variance. Then instrument the difference between publish time of the latest part and first client visibility at edge. If that number is unstable, your latency problem is not in the player yet.

Keep part objects cacheable, but keep playlists extremely fresh

Production LL-HLS requires asymmetric caching behavior. Parts and complete segments want aggressive edge retention and shield collapse prevention. Media playlists want near-immediate freshness, support for delta updates, and correct cache semantics for blocking reload. Treating both classes the same is how you get either origin melt or stale manifests.

A common design is:

• Parts and segments: cache at edge and shield, short TTL, stale-if-error allowed, collapsed forwarding on misses.
• Media playlists: revalidate aggressively, preserve blocking semantics, bypass stale serving except in explicit failover mode.
• Master playlists: cache longer, purge rarely.

HTTP/2 is not optional operationally, even if your topology supports other transports

LL-HLS is request-heavy. Multiplexing matters. HTTP/2 reduces connection churn and makes parallel part and playlist activity manageable on the last mile. It does not remove TCP head-of-line blocking at the transport level, so packet loss still hurts, especially when the player is camping near the edge with little buffer. But compared with HTTP/1.1 request patterns, it is the difference between a workable control plane and a self-inflicted latency tax.

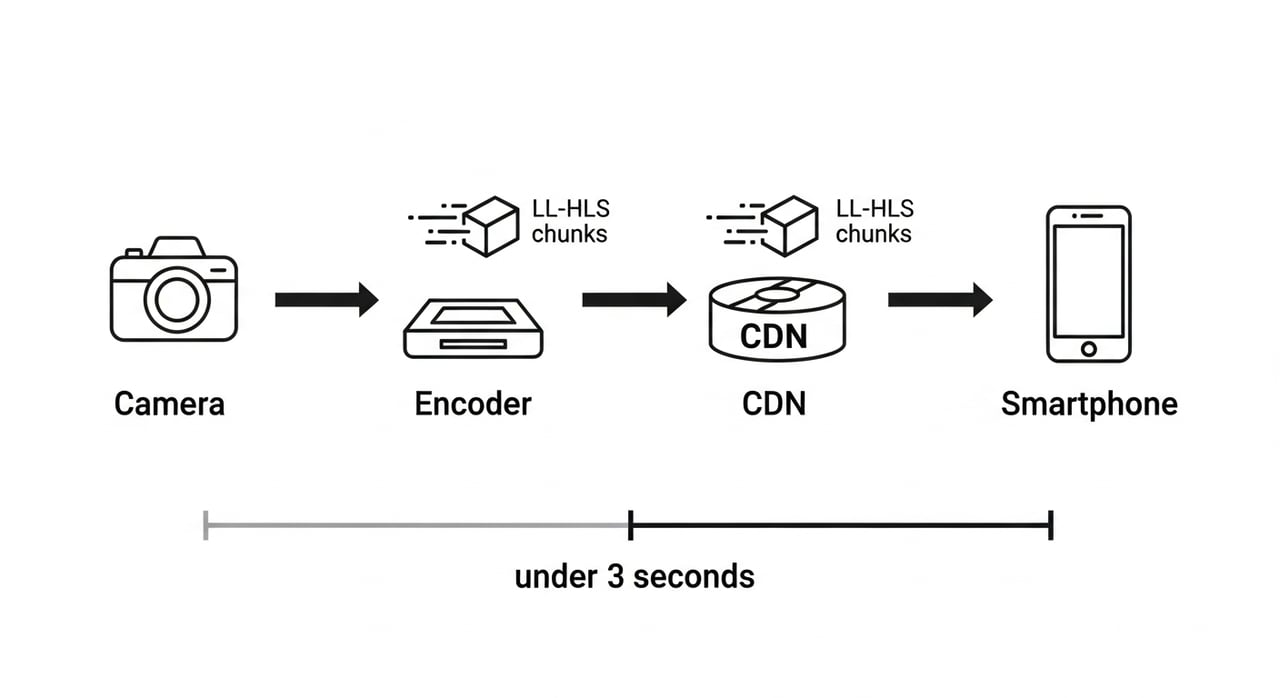

Reference architecture for low-latency HLS with CDN for production

A production-grade low latency HLS path that consistently lands under 3 seconds usually has six explicit components:

1. Contribution ingest with stable timestamping and deterministic GOP alignment.
2. Live encoder with fixed keyframe cadence and no surprise scene-cut boundaries.
3. CMAF-aware packager emitting partial segments, delta playlists, preload hints, and rendition reports.
4. Shield tier that understands high request density and collapses cache fills for parts.
5. Edge tier tuned differently for media playlists versus parts.
6. Player logic that honors server control values but retains controlled drift correction.

The data flow matters more than the box count. The packager should publish parts immediately, not batch them behind segment completion. The shield should collapse simultaneous part misses into one origin fetch. The edge should avoid serving a stale live playlist for the extra few hundred milliseconds that destroy your live edge. The player should avoid over-buffering when it detects stable part cadence and low retransmission.

For teams shipping low latency HLS at enterprise scale, the CDN choice is not just about raw throughput. It is about whether the platform stays predictable when playlist reload concurrency spikes and whether you can tune cache behavior without fighting the provider. BlazingCDN is relevant here because it targets that cost-optimized enterprise-grade slot directly: stability and fault tolerance comparable to Amazon CloudFront, 100% uptime, flexible configuration, and fast scaling under demand spikes, while remaining significantly more cost-effective for large media workloads. At high volumes, pricing scales down to $2 per TB, which changes the economics of keeping LL-HLS on HTTP infrastructure instead of forcing a protocol pivot for cost reasons.

If you want to compare configuration and cost posture for this kind of workload, BlazingCDN CDN comparison is the practical place to start.

Best LL-HLS settings for production streaming

There is no universal profile, but most successful low latency HLS deployments cluster around a narrow set of values.

These are starting points, not laws. News and sports with highly bursty concurrency often need slightly more conservative hold-back to keep p99 rebuffering acceptable. Sports betting overlays, auctions, and synchronized second-screen experiences usually push closer to the edge and accept more aggressive drift correction.

Implementation detail: packaging and edge behavior

The exact encoder and packager stack varies, but the operational requirements are consistent: aligned 1-second GOPs, CMAF fragments, immediate part emission, and manifests with low-latency directives. A representative FFmpeg-side encoder profile looks like this:

ffmpeg \
  -re -i input.srt \
  -c:v libx264 \
  -preset veryfast \
  -tune zerolatency \
  -profile:v high \
  -g 25 \
  -keyint_min 25 \
  -sc_threshold 0 \
  -r 25 \
  -c:a aac \
  -b:a 128k \
  -ar 48000 \
  -f tee \
  "[f=mp4:movflags=frag_keyframe+empty_moov+default_base_moof]pipe:1"

That only gets you aligned fragmented output. The packager still has to emit LL-HLS-compatible playlists and parts. In practice, you want packager settings equivalent to:

• Segment duration: 1 second
• Part duration: 0.2 to 0.25 seconds
• Partial segments enabled
• Blocking playlist reload enabled
• Delta updates enabled
• Preload hints enabled
• Rendition reports enabled

On the edge, separate playlist and media behaviors. A useful NGINX-style sketch is below. It is not a drop-in full config. It shows the policy split that actually matters.

map $uri $llhls_class
  "~*\.m3u8$"          playlist;
  "~*\.m4s$"           part;
  default              other;

proxy_cache_path /var/cache/nginx levels=1:2 keys_zone=llhls:512m max_size=200g inactive=30s use_temp_path=off;

server
  listen 443 ssl http2;
  server_name live.example.com;

  location ~* \.m3u8$
    proxy_pass http://shield;
    proxy_http_version 1.1;
    proxy_cache llhls;
    proxy_cache_valid 200 1s;
    proxy_cache_revalidate on;
    proxy_cache_lock on;
    proxy_read_timeout 5s;
    add_header Cache-Control "max-age=1, must-revalidate";

  location ~* \.m4s$
    proxy_pass http://shield;
    proxy_http_version 1.1;
    proxy_cache llhls;
    proxy_cache_valid 200 10s;
    proxy_cache_lock on;
    proxy_cache_use_stale error timeout updating;
    proxy_read_timeout 10s;
    add_header Cache-Control "public, max-age=10";

  location /
    proxy_pass http://shield;

The subtlety is not the TTL values themselves. It is cache-lock behavior and timeout policy for blocked playlist reloads. If playlist requests time out at the edge before the next part publish, clients fall back to retry patterns that increase latency and request pressure at the same time. That is the worst possible failure mode because your monitoring often shows more request activity and fewer obvious errors while the viewer experience gets worse.

LL-HLS vs WebRTC for live streaming latency

This comparison is usually framed too broadly. The real question is what latency range you need, under what concurrency, with what tolerance for state and session complexity.

If you need a million viewers at 2.5 to 3.5 seconds with standard player workflows, low latency HLS is often the better system design. If you need 300 milliseconds for live conversation, synchronized control, or direct audience participation, LL-HLS is the wrong hammer. The mistake is trying to squeeze WebRTC-class latency out of HTTP delivery, or paying WebRTC complexity when your actual requirement is just to get broadcast latency out of the double digits.

Trade-offs and edge cases that break low-latency HLS at scale

Packet loss hurts more near the edge than most dashboards show

Small parts reduce latency but also reduce slack. Over TCP-based delivery, even modest loss can create disproportionate tail latency because retransmission stalls arrive precisely when the player has the least buffer. This is why low latency HLS often looks healthy in average bitrate and overall throughput graphs while p99 live edge drifts badly on mobile networks.

ABR logic can sabotage latency goals

A player that makes slow bitrate decisions often protects continuity at the cost of latency drift. After one late part, it increases buffer, reloads less aggressively, and never returns to the configured live edge unless you explicitly implement catch-up logic. That creates the common complaint: the stream starts at 2.5 seconds and ends the event at 9 seconds without a visible outage.

Origin amplification can explode before bandwidth does

With parts, a small live event can generate a surprisingly high miss rate at shield if cache keys differ by query parameters, authorization tokens, or inconsistent normalization. You may still have plenty of origin bandwidth headroom while origin request concurrency melts the packager. If you are not tracking per-object collapse ratio and shield miss concurrency, you are blind to one of the main failure modes of low-latency HLS with CDN for production.

Ad insertion remains a latency trap

Server-side ad insertion is not impossible with LL-HLS, but splice correctness, timeline continuity, and cacheability get harder when you are publishing partial segments on tight cadence. The common failure is not total playback failure. It is subtle timeline discontinuity that forces the player to drift back from the edge after the ad break.

Observability is usually missing the metric that matters

Most teams watch segment availability delay, player startup time, CDN hit ratio, and rebuffer ratio. They do not watch live-edge distance as a percentile distribution correlated with rendition, network type, and cache status. For sub-3-second work, that is the primary SLO. Without it, you can reduce rebuffering and still ship a slower product.

When this approach fits and when it does not

LL-HLS fits when you need HTTP-native distribution, large fan-out, broad device support, and live latency in the 2 to 5 second range, with the ability to spend engineering effort on manifests, cache hierarchy, and player tuning rather than on session infrastructure. That includes sports, live news, town halls, product launches, trading broadcasts, watch parties, and commerce streams where the difference between 12 seconds and 2.8 seconds changes the product experience.

It does not fit when the requirement is conversational interactivity, cloud gaming control loops, synchronized low-hundreds-of-milliseconds audience participation, or any workflow where a couple of seconds is already failure. In those cases, compare against WebRTC or a hybrid architecture and make the trade openly. Also be honest about team maturity. Low latency HLS is simpler than operating large real-time session infrastructure, but it is not simple. The moment you aim for sub-3-second latency instead of just shorter HLS, your CDN and player become active parts of the media pipeline.

For high-volume media organizations, the economics are worth modeling explicitly. If your event cadence is frequent and concurrency spikes are real, the difference between paying premium CDN rates and paying volume-based delivery starting at $4 per TB, scaling down to $2 per TB at 2 PB+, compounds fast. BlazingCDN is built for that profile: reliable enough for enterprise live delivery, fault tolerant at the level teams expect from Amazon CloudFront, and materially more cost-effective while still allowing flexible LL-HLS tuning. Pricing starts at $100 per month for up to 25 TB and scales through $4,000 per month for up to 2,000 TB, with additional usage priced down by commitment and no other costs.

What to test this week if you want real sub-3-second low latency HLS

Run one benchmark, not ten. Take your current live pipeline and measure live-edge distance at p50, p95, and p99 under a controlled concurrency ramp while toggling only three variables: blocking playlist reload on versus off, part duration at 500 milliseconds versus 250 milliseconds, and playlist cache behavior at edge versus shield. Instrument shield miss concurrency, part cache hit ratio, and first visibility delay for the newest part. That single test usually tells you whether your bottleneck is player policy, cache semantics, or origin fan-out.

If you already run LL-HLS in production, the pointed question is this: when your p99 live-edge distance doubles, do you know whether the first cause is blocked reload timeout, cache miss amplification, or player drift after ABR downshift? If the answer is no, you do not have a latency problem yet. You have an observability problem that happens to look like latency.
