Low-Latency HLS in 2026: The CDN Tuning Playbook

In Q1 2026, a major European broadcaster measured glass-to-glass latency across its LL-HLS pipeline and found that 68% of the total delay budget was consumed not by encoding or ingest, but by CDN edge behavior: playlist fetch intervals, cache-fill races on partial segments, and connection reuse failures under load. The encoder was already fast. The origin was already close. The CDN configuration was the bottleneck. This pattern is more common than most teams admit, and it is the reason low-latency HLS deployments routinely land at 4–6 seconds instead of the sub-2-second target the protocol can theoretically hit. This article gives you the tuning playbook: LL-HLS segment architecture, ABR ladder design for latency-constrained delivery, CDN-layer configuration that actually moves the needle, and a failure-mode taxonomy drawn from production incidents. If you run live video at scale, this is the reference you keep open during your next config review.

What Changed for Low-Latency HLS in 2026

Apple's LL-HLS specification has been stable since its 2020 introduction, but the ecosystem around it shifted meaningfully in the past twelve months. As of early 2026, three developments matter for production deployments:

• Partial segment support in player SDKs matured. Both hls.js 1.6+ and AVPlayer on iOS 18 / tvOS 18 now handle PRELOAD-HINT directives and blocking playlist reloads with fewer edge cases. The days of partial-segment stalls on seek are largely behind us, which means you can actually rely on 200ms parts in production without a fallback safety net of full segments.
• HTTP/3 and QUIC adoption at CDN edges crossed 40% of live-stream traffic globally (2026 industry measurements). This matters because LL-HLS multiplexes many small requests—playlist reloads, partial segments, media initialization—onto the same connection. QUIC's 0-RTT connection resumption and stream-level multiplexing eliminate the head-of-line blocking that HTTP/2 over TCP imposed on exactly this traffic pattern.
• Server-side ad insertion (SSAI) pipelines now handle partial segments. In 2024-2025, SSAI was the leading reason teams fell back to standard HLS for monetized streams. Major SSAI vendors shipped partial-segment-aware stitching in late 2025, removing that blocker.

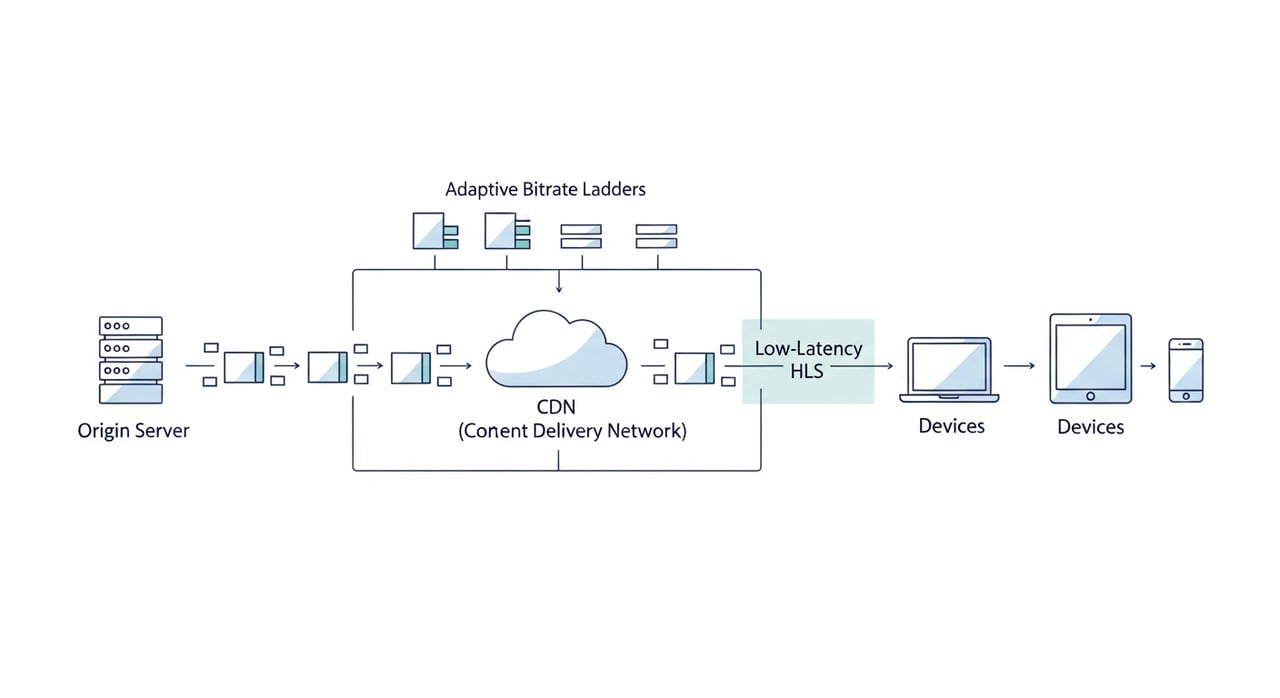

LL-HLS Segment Architecture: Where Latency Actually Hides

A standard HLS stream with 6-second segments and a 3-segment playlist window imposes a theoretical minimum latency of roughly 18–25 seconds. LL-HLS attacks this with two mechanisms: partial segments (parts) and blocking playlist reloads. Understanding where latency accumulates in this system is prerequisite to tuning it.

Partial Segments and Part Duration

The PART-TARGET in your multivariant playlist controls the granularity. Apple recommends a PART-TARGET between 200ms and a value equal to the segment duration. In practice, as of 2026, most production deployments settle on 300–500ms. Going below 300ms increases per-second request counts on both origin and edge by 3–5×, which is workable at moderate concurrency but creates cache-pressure problems at six-figure concurrent viewer counts. The tradeoff is real: a 200ms part target yields roughly 1.0–1.5s achievable latency; a 500ms part target yields 2.0–3.0s. Pick based on your concurrency ceiling.

Blocking Playlist Reload

The player appends _HLS_msn and _HLS_part query parameters to the playlist request, and the server holds the response until that part is available. This eliminates polling waste, but it means your CDN must support long-poll or chunked-transfer pass-through without timing out the connection. A 5-second edge timeout—common in default CDN configurations—will break blocking reloads under any part target above trivial concurrency. Set your edge read timeout to at least 1.5× your segment duration.

HLS Bitrate Ladder Design for Low-Latency Delivery

Adaptive bitrate streaming in a latency-constrained pipeline requires a tighter ladder than VOD. The reason: ABR switching decisions happen on shorter observation windows when parts are 300ms rather than 6s. The player has less bandwidth-estimation data per decision cycle, which means aggressive upward switches cause rebuffering and conservative switching leaves quality on the table.

The key principle: keep inter-rung bitrate ratios between 1.5× and 2.0×. Wider gaps cause visible quality jumps during switches; narrower gaps waste encoding resources without perceptible improvement. For live sports with high-motion content, bias your ladder upward by 20–30% on bitrate at each resolution rung. For talking-head or presentation content, bias downward.

CDN Configuration for Low-Latency HLS Playback

This is where most deployments fail, and it is the section you will not find in Apple's developer documentation. CDN video streaming optimization for LL-HLS requires deliberate configuration across five areas:

1. Playlist Caching: Short TTL, Not Zero TTL

Playlist TTLs must be shorter than your PART-TARGET. A 300ms part target with a 1-second playlist TTL means the edge serves stale playlists for up to 3 parts—destroying latency. Set playlist TTL to 100–200ms or, better, use origin-connected streaming (where the edge holds a persistent connection to origin and forwards new playlist versions on publish). Zero TTL is tempting but generates origin-crushing request rates at scale.

2. Partial Segment Cache Fill

Partial segments are tiny objects—often 30–100 KB. Standard cache-fill logic that batches multiple viewer requests into a single origin fetch (request collapsing) must be aware that partial segments are append-only: the edge must not serve a cached 30 KB response when the origin has already extended that part to 80 KB. Ensure your CDN supports byte-range-aware cache fill or disable request collapsing for partial-segment paths.

3. Connection Reuse and Keep-Alive

An LL-HLS player at 300ms part target issues roughly 10–12 HTTP requests per second across playlist reloads and part fetches. TCP+TLS handshake overhead on each request is catastrophic. Enforce HTTP/2 or HTTP/3 connection reuse with keep-alive windows of at least 30 seconds at the edge.

4. Origin Shield Placement

Shield placement matters more for LL-HLS than for VOD because of the temporal sensitivity. Place your shield in the same region as your packager/origin. Cross-region shield-to-origin adds 40–80ms per playlist reload, which compounds across every viewer session.

5. Delta Playlist Updates

LL-HLS supports CAN-SKIP-UNTIL in the server, allowing the player to request only the delta of the playlist since its last fetch. This reduces playlist payload size from kilobytes to hundreds of bytes. Enable it at the packager and ensure your CDN does not strip or normalize the _HLS_skip query parameter.

Failure Modes in Production: A Taxonomy

This section documents the five most common LL-HLS failure patterns observed across production deployments in 2025–2026. Each is a real pattern; none is hypothetical.

1. Thundering Herd on Segment Boundaries

When a new segment publishes, every player simultaneously requests the first part. If request collapsing is misconfigured, the origin sees a spike proportional to concurrent viewers. Mitigation: enable request collapsing for the first part of each segment while disabling it for subsequent parts (which are append-in-progress).

2. Playlist Desync After CDN Failover

If an edge PoP fails over to a secondary origin or shield, the new upstream may be one segment behind. Players receive a playlist that references parts not yet available on the new path, triggering 404s and rebuffering cascades. Mitigation: ensure all origin/shield instances share packager state, or implement a playlist-version health check in your failover logic.

3. ABR Oscillation Under Jitter

With short observation windows, ABR algorithms oscillate between rungs on jittery connections, creating a worse experience than locking to a lower rung. Mitigation: implement a hysteresis buffer—require sustained bandwidth above the upgrade threshold for at least 3 part durations before switching up.

4. PRELOAD-HINT Miss on Stale Edge Cache

The player requests a part via PRELOAD-HINT, but the edge has a stale playlist that does not reference that part yet. Result: 404 or long-poll timeout. Mitigation: tie PRELOAD-HINT handling to the blocking playlist reload flow, not to independent part fetches.

5. Clock Drift Between Packager and CDN Edge

EXT-X-PROGRAM-DATE-TIME tags require synchronized clocks. Drift above 500ms causes player-side latency compensation to over- or under-correct. Mitigation: NTP sync with stratum-2 or better on all packager and edge nodes; monitor drift as an SLI.

Cost Model: CDN Bandwidth at LL-HLS Scale

LL-HLS increases per-viewer request rates by 8–12× compared to standard HLS, but bandwidth per viewer stays roughly the same (the video bitrate is unchanged; you are just delivering it in smaller pieces). The cost driver is not bandwidth—it is request pricing on CDNs that charge per-request. For a 50,000 concurrent viewer stream at 300ms part target, expect roughly 500,000–600,000 requests per second across all edge PoPs. On request-priced CDNs, that adds up fast.

This is where CDN selection becomes a cost-architecture decision. BlazingCDN's media delivery infrastructure provides volume-based pricing that scales predictably: starting at $4/TB for moderate traffic and dropping to $2/TB at 2 PB+ monthly volumes, with no per-request surcharges. For a live sports operation pushing 200 TB/month, that translates to meaningful savings versus request-priced alternatives—with 100% uptime SLA and the ability to absorb demand spikes during marquee events without pre-provisioning.

FAQ

How does LL-HLS reduce live stream latency compared to standard HLS?

Standard HLS requires the player to buffer multiple full segments (typically 3× 6s = 18s minimum). LL-HLS introduces partial segments (200–500ms each) and blocking playlist reloads that eliminate polling delay. Combined, these reduce achievable glass-to-glass latency to 1.5–3 seconds as of 2026 player implementations.

What is the best HLS bitrate ladder for low-latency streaming?

Keep 4–6 rungs with inter-rung bitrate ratios of 1.5–2.0×. For H.264, a practical 2026 ladder runs from 400 kbps at 240p to 5,000 kbps at 1080p. For HEVC or AV1, reduce each rung by 35–40%. Tighter ladders reduce ABR oscillation under the shorter observation windows that partial segments impose.

How do I configure a CDN for low-latency HLS playback?

Set playlist cache TTLs below your PART-TARGET (100–200ms is typical). Ensure your edge supports blocking playlist reloads without premature timeouts. Disable or scope request collapsing to avoid serving stale partial segments. Place your origin shield in the same region as your packager to minimize playlist-fetch latency.

Does LL-HLS work with HTTP/3 and QUIC?

Yes, and as of 2026 it is the recommended transport. LL-HLS multiplexes many small, latency-sensitive requests per second. QUIC's 0-RTT resumption and stream-level multiplexing eliminate TCP head-of-line blocking, which measurably reduces p99 part-fetch times under congestion.

How does adaptive bitrate streaming interact with low-latency HLS?

ABR algorithms must adapt to shorter observation windows when parts are 300ms instead of 6-second segments. Without hysteresis tuning, ABR oscillates excessively. Best practice in 2026: require sustained bandwidth above the upgrade threshold for at least 3 consecutive part durations before switching to a higher rung.

What are the main failure modes of LL-HLS at scale?

Thundering herd on segment boundaries, playlist desync after CDN failover, ABR oscillation under jitter, PRELOAD-HINT misses from stale edge caches, and clock drift between packager and edge. Each has specific mitigations detailed in this article's failure-mode taxonomy.

Your Next Move

Pick one production LL-HLS stream this week. Instrument three metrics at the CDN edge: playlist-fetch p99 latency, partial-segment cache-hit ratio, and time-to-first-part-after-tune-in. Plot them over 24 hours. If your playlist p99 exceeds your PART-TARGET, your CDN config is your bottleneck—not your encoder, not your origin. Start there. If you have already tuned past that threshold, share what moved the needle for your stack. The gap between "LL-HLS deployed" and "LL-HLS actually low-latency" is configuration detail, and configuration detail is what this community does best.
