Video CDN for Multi-Region Hosting in 2026: Architecture Playbook

In Q1 2026, global video traffic crossed 5.2 exabytes per day. That figure matters less as a headline and more as a forcing function: at that volume, a single misrouted origin-pull or a cache-miss storm during a tier-1 live event burns thousands of dollars per minute in egress alone. If you run a video CDN stack that serves audiences across three or more continents, the architecture decisions you made eighteen months ago are almost certainly costing you latency, money, or both.

This playbook gives you the 2026-current framework for multi-region video delivery: the routing and failover topology, the cost model that actually predicts your bill, the cache-tuning parameters that move rebuffer ratio below 0.3%, and a diagnostics-and-rollback procedure for when a regional deployment goes sideways. No 101-level explanations. No vendor brochure language. Just the architecture.

What Changed in Video CDN Architecture by Mid-2026

Two shifts reshaped multi-region video hosting since late 2024. First, LL-HLS part duration dropped to sub-800ms in production players (Apple's stack, ExoPlayer 2.21+, hls.js 1.6), which means your CDN edge must respond to segment requests with single-digit-millisecond cache lookup times or the player stalls. Second, AV1 hardware decode hit critical mass: as of Q1 2026, over 72% of connected TVs and 85% of mobile devices shipping support AV1 natively, which compresses your bitrate ladder but increases segment count at the low end of the quality range, shifting the cache-key cardinality problem.

The practical consequence: your edge configuration from 2024 that assumed 6-second HLS segments and H.264-only ladders is now delivering suboptimal cache-hit ratios against a request distribution shaped by 2-second AV1 segments and CMAF-chunked transfer. If you haven't re-tuned since then, start there.

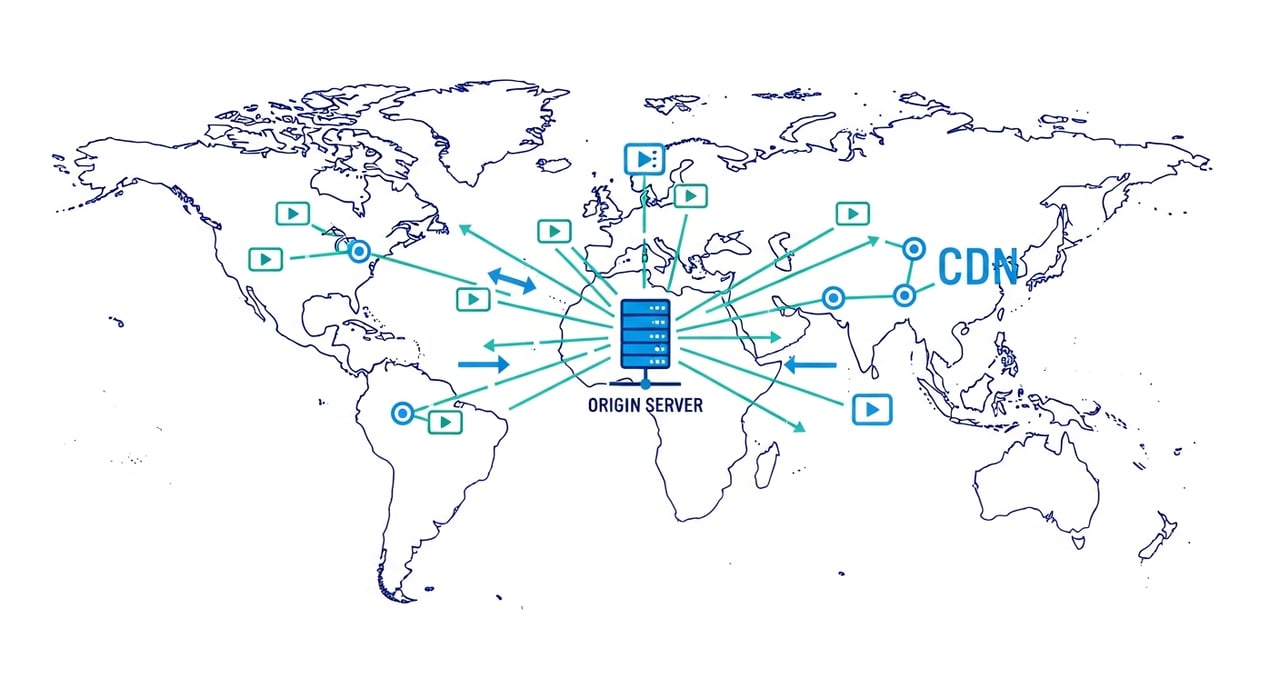

Multi-Region Topology: Where the Segments Live

A multi-region video CDN stack has three layers, and getting the boundaries wrong between them is the most common source of unnecessary egress spend.

Origin Tier

Your packager output (whether live or VOD post-transcode) lands in object storage in two or three regions. For VOD, pick regions near your largest audience clusters. For live, place origins near your ingest points. Cross-region replication of manifests is mandatory; segment replication is optional if your shield layer is correctly placed. In 2026, the cost delta between S3 Standard and R2/Backblaze B2 for video segment storage is roughly 4:1 per TB-month, so origin storage choice directly impacts your baseline before a single viewer connects.

Shield Tier

Origin shields collapse fan-out. Without them, N edge nodes generate N origin-pulls per cold segment. With a shield per continent, you get at most 3-5 origin-pulls globally per segment, regardless of edge count. The shield should sit in the same region as the origin it fronts. Shield-to-origin should be private network or dedicated transit, not public internet. Measure shield-to-origin p99 latency monthly; anything above 40ms means you placed it wrong or your provider's backbone shifted.

Edge Tier

Edge nodes serve viewers. The 2026-era design question isn't "how many PoPs" but "how is the cache partitioned." If you serve both live and VOD from the same edge fleet, your live segments (hot for 30 seconds, then worthless) evict your VOD long-tail cache. Separate cache partitions, or at minimum separate cache-key namespaces with independent eviction policies, are the fix. Most CDN control planes now expose this. If yours doesn't, that's a signal to evaluate alternatives.

Routing and Failover That Actually Works

DNS-based geo-steering with 30-second TTLs was adequate in 2022. In 2026, the expectation is anycast-first with DNS fallback, or HTTP-level redirect steering from a control plane that ingests real-time edge health. The failover path matters more than the primary path because failures at scale are when your architecture earns its design budget.

Your failover checklist for multi-region video CDN deployments:

• Health probes from at least three vantage points per region, checking both HTTP response and segment byte-range validity (a 200 that returns a truncated segment is worse than a 503).
• Failover trigger threshold: two consecutive failed probes from two vantage points, not one. Single-probe triggers cause flapping that doubles your origin load.
• Manifest rewrite on failover: the player must receive updated base URLs pointing to the surviving region's edge. If your manifest is cached at the edge with a 6-second TTL and failover happens at second 1, viewers stall for 5 seconds. Pre-compute failover manifests and push them to edge cache on trigger.
• Drain, don't cut. Shift traffic over 30-60 seconds using weighted routing, not a binary switchover. Binary cuts cause thundering-herd cache-miss storms on the failover target.

Video CDN Cost Model: Predicting Your Actual Bill

Most teams estimate CDN cost as egress-GB times per-GB price. That calculation is wrong by 20-40% because it ignores three cost amplifiers specific to video workloads.

First, cache-miss egress from origin or shield is billed at origin-region rates, which are often 2-3x edge rates on hyperscaler CDNs. A 92% cache-hit ratio sounds strong until you realize the 8% miss traffic is priced at premium rates and concentrated during traffic spikes when your bill is already high.

Second, request pricing. At 2-second segment durations with a 5-rung ABR ladder, a single concurrent viewer generates roughly 150 segment requests per minute. Multiply by peak concurrency. On providers that charge per-10,000 requests (CloudFront: $0.0075-$0.016 per 10K HTTPS requests depending on region, as of May 2026), request costs can exceed egress costs for low-bitrate mobile streams.

Third, log and analytics pipeline costs. Real-time log delivery from edge to your analytics stack incurs per-line or per-byte charges that scale linearly with request volume. Budget 3-7% of your CDN spend for observability infrastructure.

For high-volume operators delivering 100 TB/month or more, the per-GB rate variance across providers is substantial. Hyperscaler CDNs typically land between $0.02 and $0.085 per GB depending on region and commit. Independent CDN providers optimized for media workloads operate at significantly lower price points. BlazingCDN's media delivery infrastructure prices at $0.004/GB at the 25 TB tier, scaling down to $0.002/GB at 2 PB+, with 100% uptime SLA and API-driven configuration that handles demand spikes without manual intervention. For context, that's roughly one-tenth the cost of equivalent CloudFront egress in most regions, with stability and fault tolerance that enterprises like Sony rely on in production.

Cache Tuning for Sub-0.3% Rebuffer Ratio

Rebuffer ratio is the metric that correlates most directly with viewer abandonment. As of 2026 industry measurements, the median rebuffer ratio across top-quartile streaming services is 0.25%. If yours is above 0.5%, you are losing viewers to buffering before content quality even enters the equation.

Three cache-layer adjustments that move the needle:

• Prefetch live segments at the edge. If your packager signals the next segment URL in the manifest (standard in LL-HLS), configure the edge to prefetch it before any viewer requests it. This converts first-viewer cache misses into cache hits for all subsequent viewers. The latency saving is the full shield-to-origin round trip, typically 40-120ms.
• Tune TTLs per content type. Manifests: 1-2 seconds for live, 3600+ seconds for VOD. Segments: for live, set TTL equal to segment duration plus one interval. For VOD, set TTL to 86400 seconds or longer. Init segments and encryption keys: cache aggressively with long TTLs and purge on rotation.
• Normalize cache keys. Strip query parameters that don't affect content (tracking IDs, session tokens passed as query strings). Every unique cache key is a potential miss. A misconfigured cache key policy can halve your hit ratio overnight and you won't notice until your origin bandwidth alert fires.

Diagnostics and Rollback: When a Regional Deployment Fails

This section is what most video CDN guides skip. Regional deployments fail. New edge configurations get pushed, cache behavior changes, and rebuffer ratio climbs in São Paulo while your dashboards show green in Frankfurt. Here is the diagnostic sequence:

Step 1: Isolate the Symptom

Player telemetry first. Filter rebuffer events by region, ISP, and device. If the spike is region-wide across all ISPs, it's your edge or shield. If it's ISP-specific, it's a peering or last-mile issue outside your control plane.

Step 2: Validate Cache Behavior

Issue synthetic requests to the affected edge from a probe in the same region. Check X-Cache or equivalent headers. If you see MISS on segments that should be cached, inspect the cache-key policy pushed in the last deployment. Diff it against the previous known-good config.

Step 3: Check Shield and Origin Health

A degraded shield returns slow responses, not errors. Measure TTFB from edge to shield. If p99 TTFB jumped, the shield may be saturated or the path to origin changed. Check BGP looking glass for route changes in the last 24 hours.

Step 4: Rollback

Rollback the edge configuration to the last known-good version for the affected region only. Do not roll back globally — you risk breaking regions that are working. After rollback, purge cache in the affected region to clear any segments served under the broken config. Monitor for 15 minutes. If rebuffer ratio returns to baseline, root-cause the config diff. If it doesn't, the problem isn't your config and you escalate to the CDN provider's NOC.

FAQ

How many origin regions do I need for global video delivery?

For most workloads, three origin regions (US, EU, Asia-Pacific) cover 90%+ of the global audience with acceptable shield-to-origin latency. Add a fourth in South America or Middle East only if those regions represent more than 15% of your viewership. More origins means more replication cost and more operational complexity.

When should I use multi-CDN versus single-CDN for video streaming?

Multi-CDN is justified when you exceed 50 Gbps peak throughput, when you serve live events where a single-provider outage is unacceptable, or when regional performance variance across a single provider exceeds 20% in p95 TTFB. Below those thresholds, the operational overhead of multi-CDN switching logic and dual monitoring typically outweighs the resilience benefit.

What cache-hit ratio should I target for video CDN workloads?

For VOD, target 95%+ at the edge and 99%+ when including the shield layer. For live, 85-90% at the edge is realistic because the first request per segment per edge node is always a miss. If your live cache-hit ratio is below 80%, investigate cache-key normalization and segment prefetch before adding more edge capacity.

Does AV1 encoding change my CDN cost model?

Yes. AV1 reduces bitrate by 30-50% versus H.264 at equivalent quality, which directly reduces egress spend. However, AV1 segments at lower bitrate tiers are smaller, so you serve more requests per viewing hour, which can increase request-based costs. Model both egress and request pricing before assuming AV1 reduces your total CDN bill.

How do I measure video CDN performance beyond availability?

Track four metrics: rebuffer ratio (target below 0.3%), video start time (target below 1.5 seconds), bitrate adaptation frequency (fewer switches is better), and edge TTFB by region. Aggregate availability (99.9% vs 99.99%) is insufficient because it doesn't capture degraded-but-not-down states that destroy viewer experience.

Run the Numbers This Week

Pull your edge cache-hit ratio by content type (manifest vs. segment vs. init) and by region for the last 30 days. If any region's segment cache-hit ratio is below 90% for VOD, your cache-key policy is the first place to look. If your live cache-hit ratio is below 80%, instrument prefetch and measure the delta over 48 hours. These two checks take an afternoon and typically surface 10-25% egress savings that compound every month. If you find something interesting, share the numbers — the engineering community benefits from real production data, not vendor benchmarks.
